ZLG CANET-2E-U双通道工业以太网转2.5kv隔离CAN转换器

Product Detail

Product Description

The ZLG CANET-2E-U is a rugged industrial-grade gateway designed to bridge dual CAN 2.0A/B networks with Gigabit Ethernet, enabling seamless data exchange in demanding environments like automotive diagnostics, smart factories, and energy systems

Core Features

1. Dual CAN Channels & High-Speed Ethernet

   • 2 CAN Ports: Supports 5 Kbps–1 Mbps baud rates with 2.5KVDC isolation per channel, ideal for multi-node communication (e.g., PLC control in mining or EV charging stations)

   • Gigabit Ethernet: 10/100/1000 Mbps adaptive interface with 2KV electromagnetic isolation, ensuring stable data transfer under voltage fluctuations


2. Industrial-Grade Robustness

   • Operates in **-40°C to +85°C** with 95% RH tolerance (non-condensing) and SECC metal casing for durability in harsh conditions
     EMC/ESD Protection:
   • • **±15kV air/±8kV contact discharge** resistance

     • **±2KV surge/EFT protection** on power and signal ports, compliant with industrial EMI standards


3. Advanced Networking & Protocol Support

   • TCP/UDP Multi-Connection:
     • 200 concurrent TCP connections and 6 IP segments per CAN port for simultaneous multi-user management

     • Supports DHCP, DNS, ICMP, and SOCKET protocols for IoT integration

   • CAN Frame Optimization:
     • Whitelist 64 IDs per channel to reduce bus load by 80%

     • Adjustable Ethernet buffer and flexible data splitting/merging rules via ZneCom software (v2.81+)


4. Smart Diagnostics & Configuration

   • Hardware Watchdog: Auto-reboots to recover from system faults

   • Diagnostic Ports: Monitor CAN channel errors in real time via Windows-based tools like CANtest and ZnetCom2

   • Free API Library: Simplify custom software development with prebuilt functions for configuration and firmware updates


5. Certifications & Compatibility

   • CE/RoHS certified with **<2W power consumption** and wide voltage input (6.5–30V DC)

   • Compatible with Windows OS and industrial PLC protocols


Applications

• Automotive: Multi-ECU diagnostics, EV charging network management.

• Industrial: Harsh-environment PLC control (e.g., chemical plants, mining).

• Energy: Smart grid monitoring and distributed power systems.

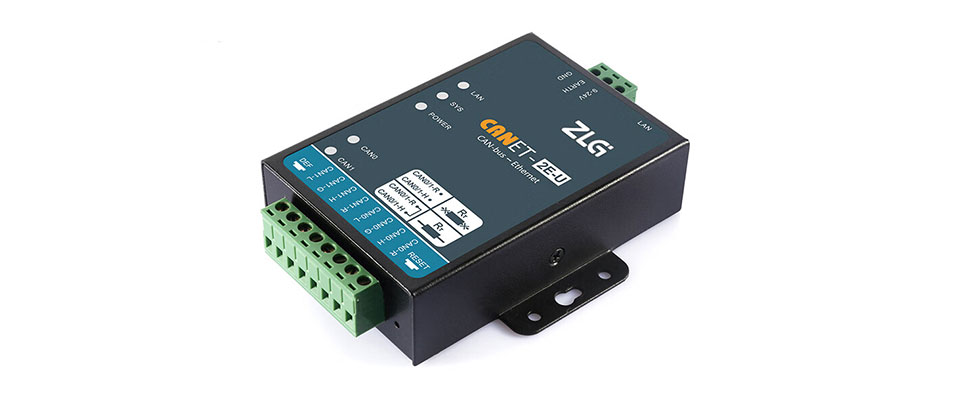

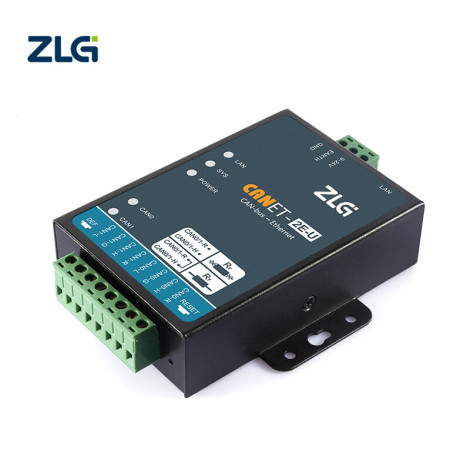

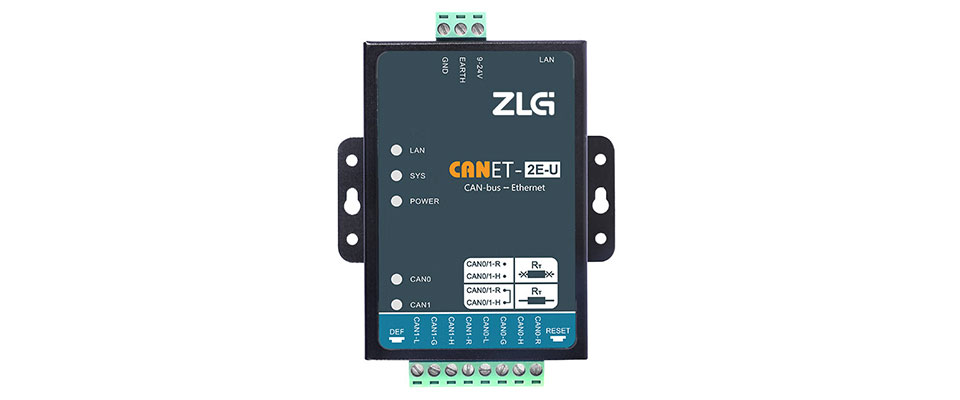

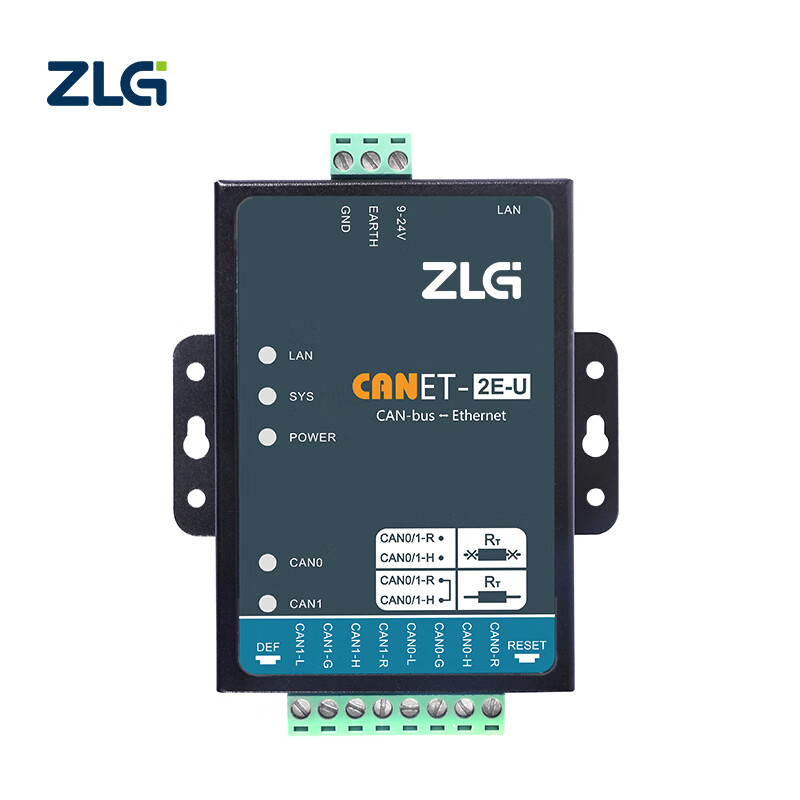

Pictures of CANET-2E-U
