3nh 便携式触摸屏光泽度计 60 度 1 年保修 0.2% 精度 0.5 秒测量时间 NHG60
Product Detail

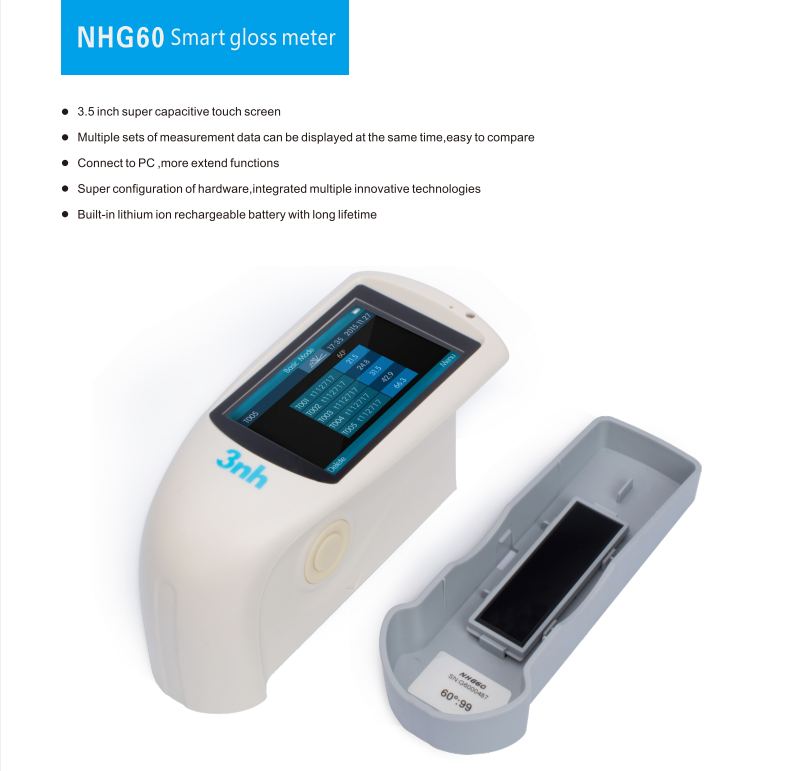

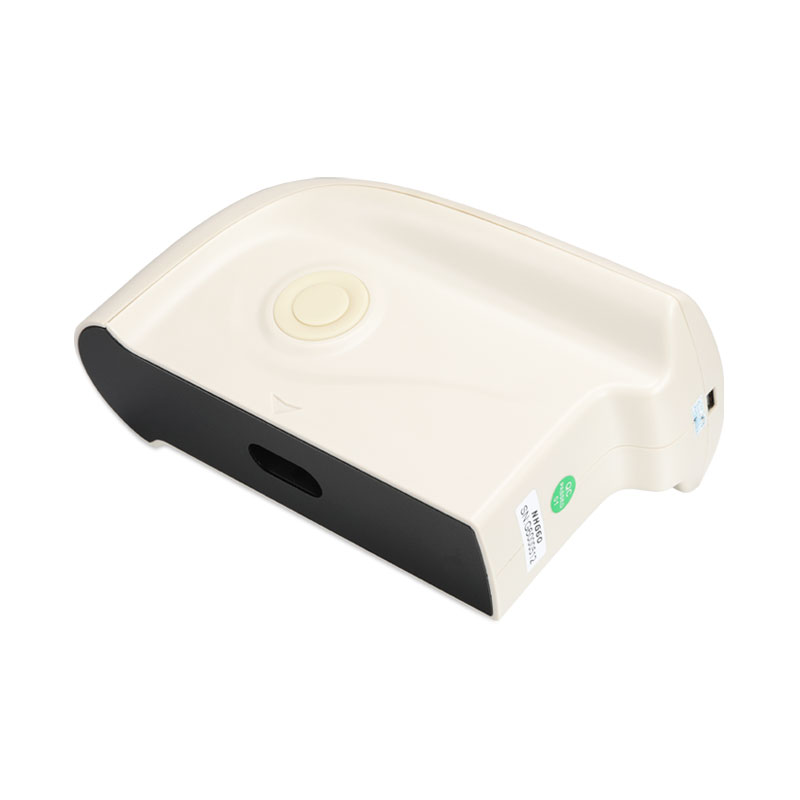

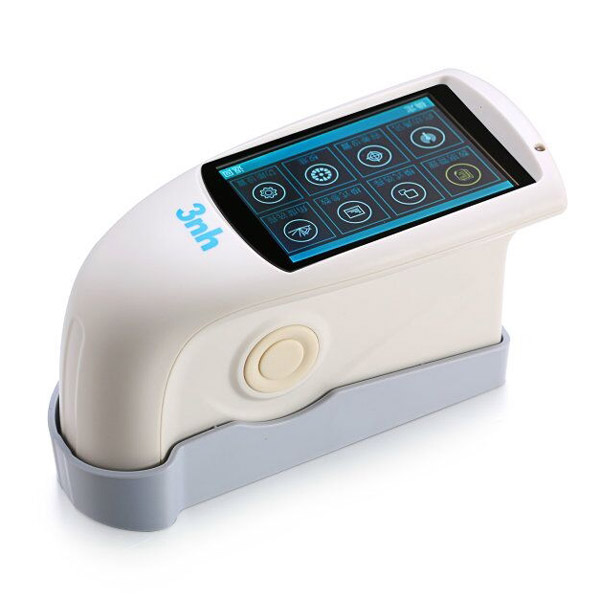

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Model | NHG60 |
Measure Angle | 60° |
Measuring Area (mm) | 9X15 |
Measurement Range | 0~1000GU |
Division Value | 0.1GU |
Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-1000GU |
Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
Errors | ±1.2 , ± 1.2% |
Measuring Time | 0.5s |
Dimension | L*W*H : 160mm*75mm*90mm |
Weight | 350g |
Language | Chinese/English |
Battery | 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours) |
Viewing Screen | TFT 3.5 inch, capacitive touch screen |
Interface | USB/RS-232 |
Data Save | Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 |
Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
Operation Temperature | 0~40ºC(32~104°F) |
Storage Temperature | -20~50ºC(-4~122°F) |
Humidity | <85% relative humidity, no condensation |

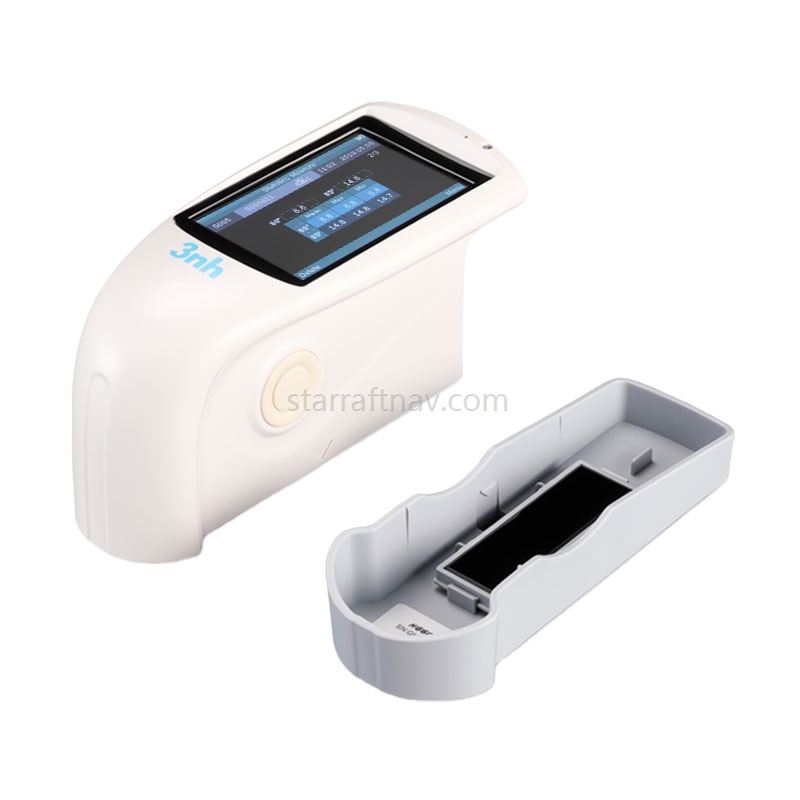

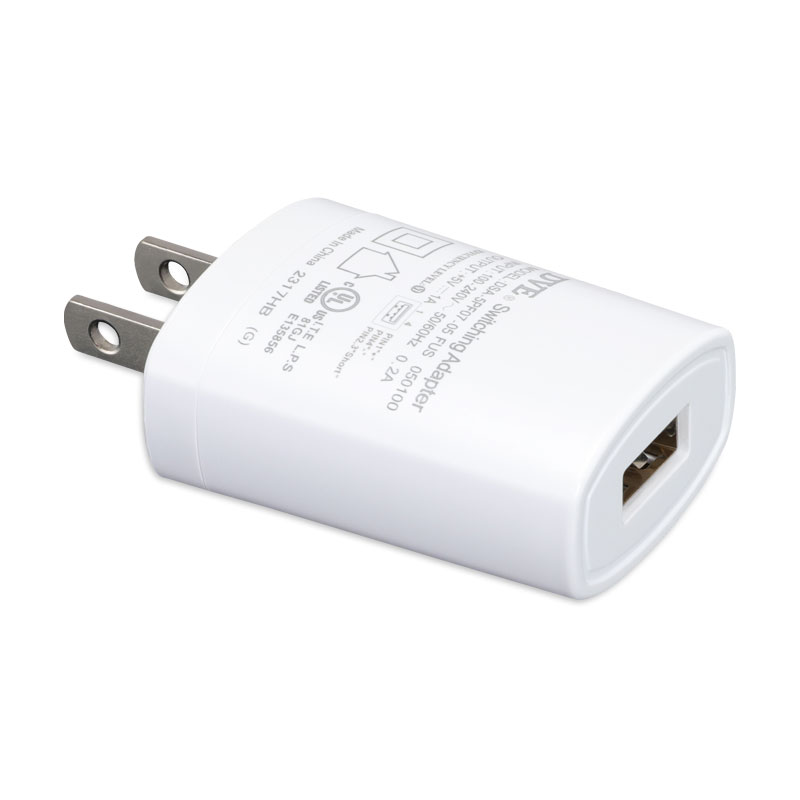

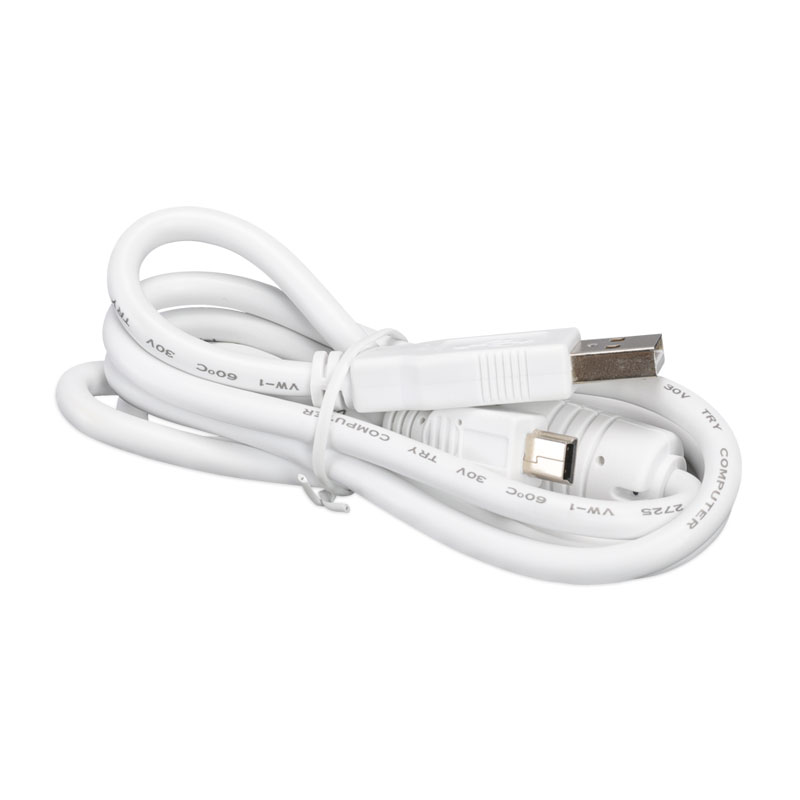

Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
Optional Accessories | Miniature Printer |
Note | The specifications are subject to change without notice. |
