YG75 75度0.1gu-150gu打印纸光泽度测定仪分析仪
$
345.12
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Products Description

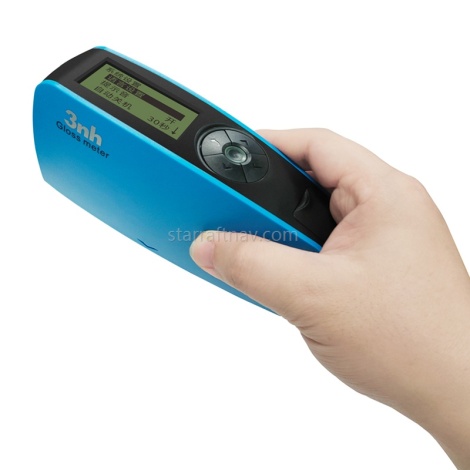

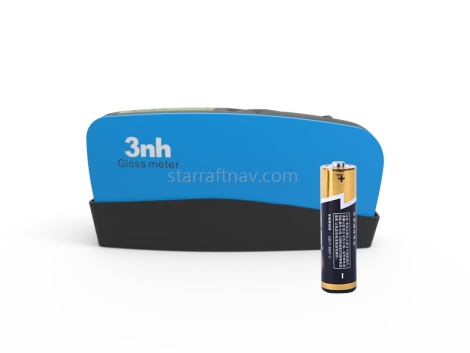

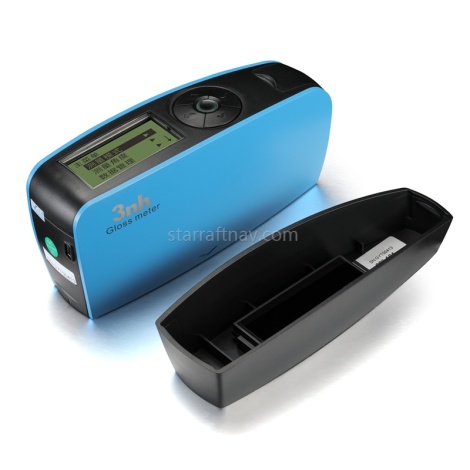

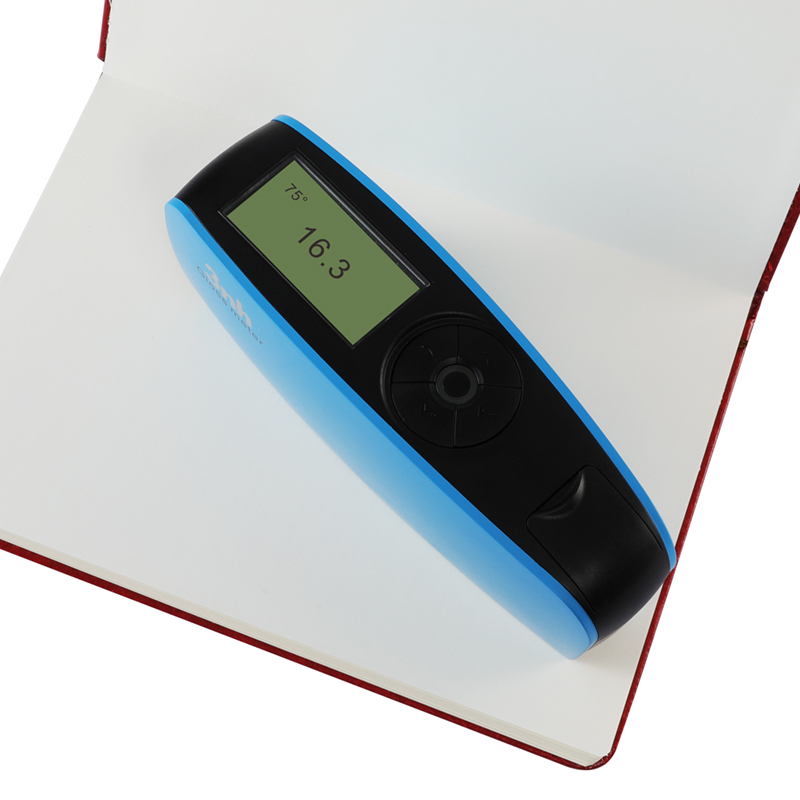

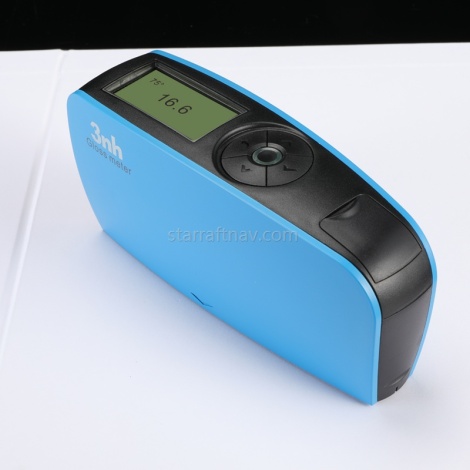

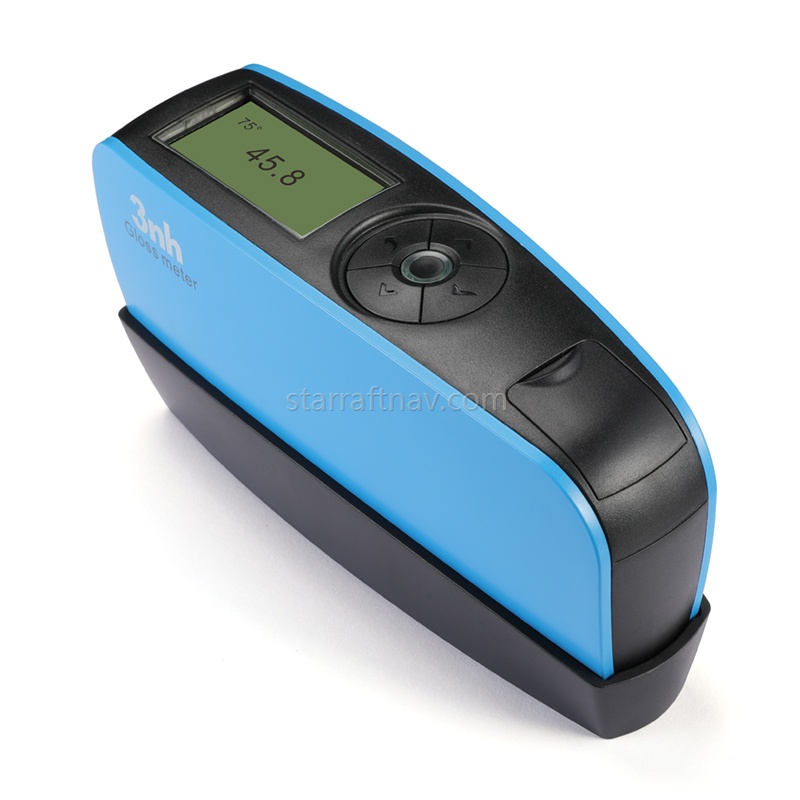

YG75 75° High Precision Gloss Meter
75 ° High Precision Gloss Meter YG75 is a professional instrument for measuring the gloss of an object surface. It uses the 75 ° angle measurement method to accurately measure the gloss of the product surface and is widely used in gloss measurement and quality inspection in paper, film, plastic and other industries.
Product Paramenters
Product number | YG75 75° High Precision Gloss Meter |
Measuring Angles | 75° |
Measuring spot (mm) | 75°:4x6 |
Measuring range | 75°: 0~150GU |
Graduation value | 0~100GU:0.1GU; 100~150GU:1GU |
characteristic | It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries. |
Measurement Mode | Basic mode, statistical mode, continuous mode, quality control mode |
measure time | 0.5 seconds |
Repeatability | 0~100GU:±0.2GU ; 100~150GU:±0.2%GU |
accuracy | Meet the requirements of JJG 696 working gloss meter |
Automatic shutdown time | 30~120 seconds optional |
Long time calibration | Auto Identify Calibration Board and Calibrate / manual calibration |
language | Simplified Chinese, English, Traditional Chinese |
Storing data | 35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode) |
Display | 2.3 inch black and white display |
size | 160X52X84mm |
weight | About 300g (including calibration box and batteries) |
power supply | 1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port |
interface | USB |

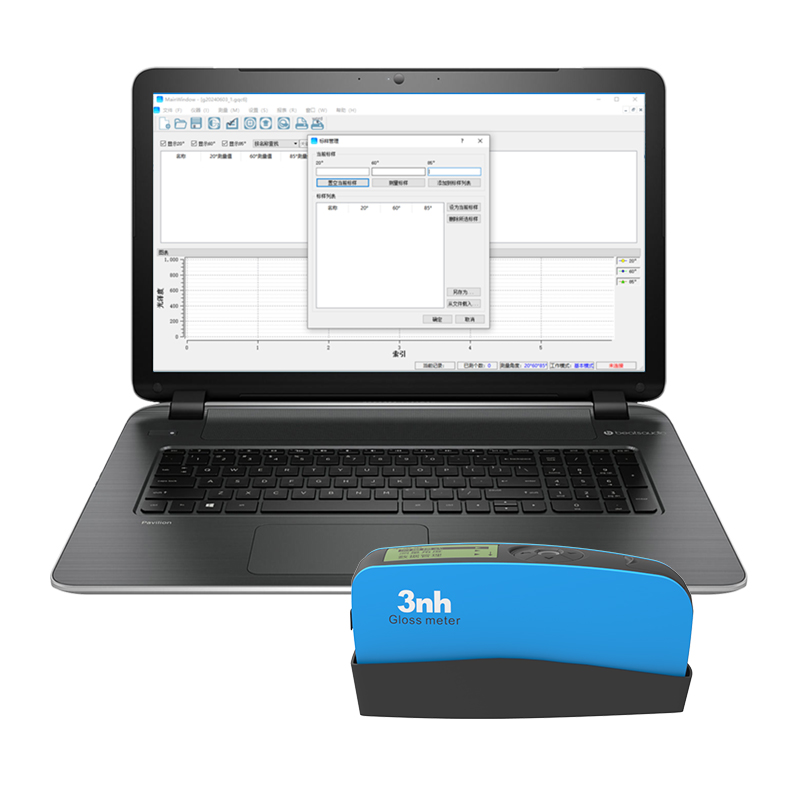

PC Software | GQC6 quality management software, quality inspection report printing, more functional expansion |
Operating temperature range | 0~40°C (32~104°F) |
Storage temperature range | -20~50°C (-4~122°F) |
humidity | Less than 85% RH, no condensation |

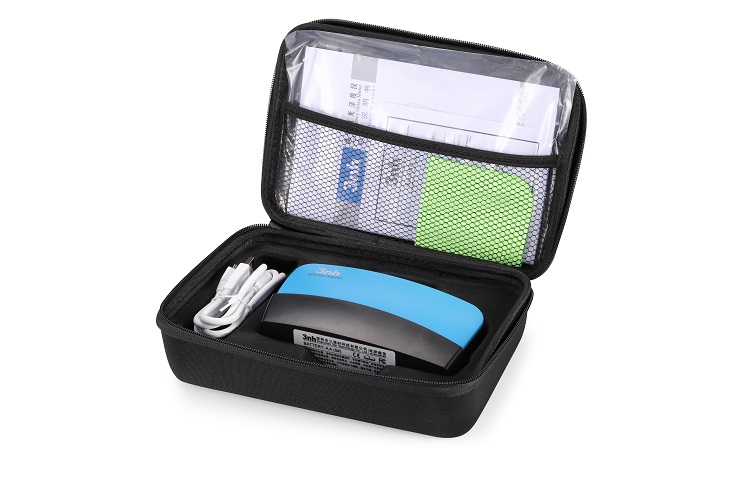

Standard accessories | USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board |
Optional accessories | Micro printer, Bluetooth 5.0 adapter |
Note | The technical parameters are for reference only, please refer to the actual products sold |
Product packaging
Package: | Alumnium alloy metal box or carton package. |
Payment: | T/T, Western Union, Paypal , Credit Card |
Lead Time: | 1-3 workdays |
Shipping | DHL, Fedex, UPS, EMS,TNT, etc |
