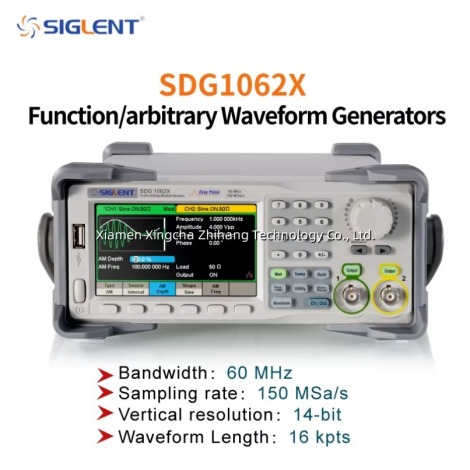

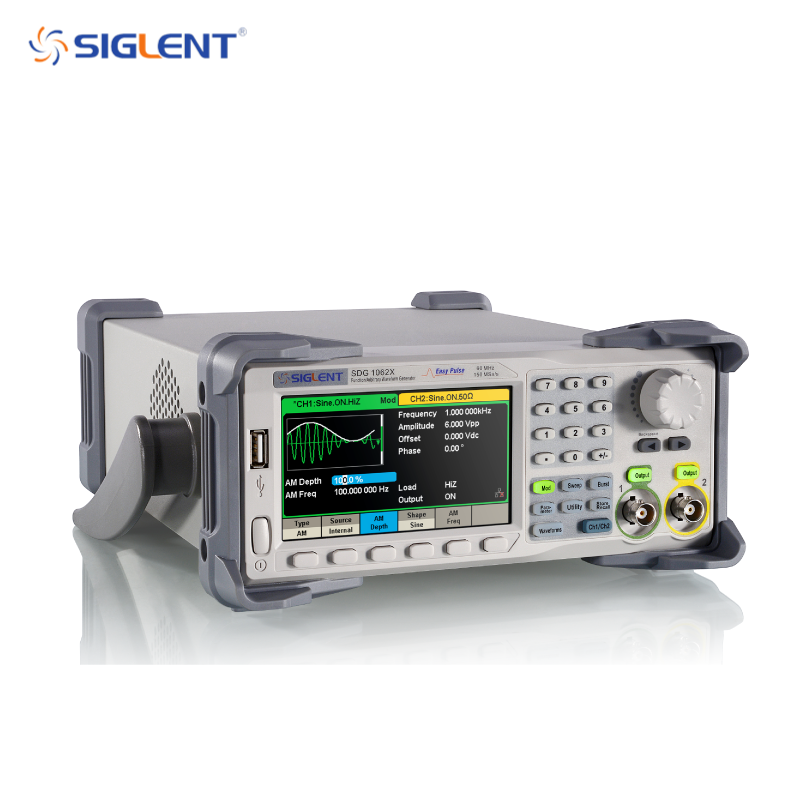

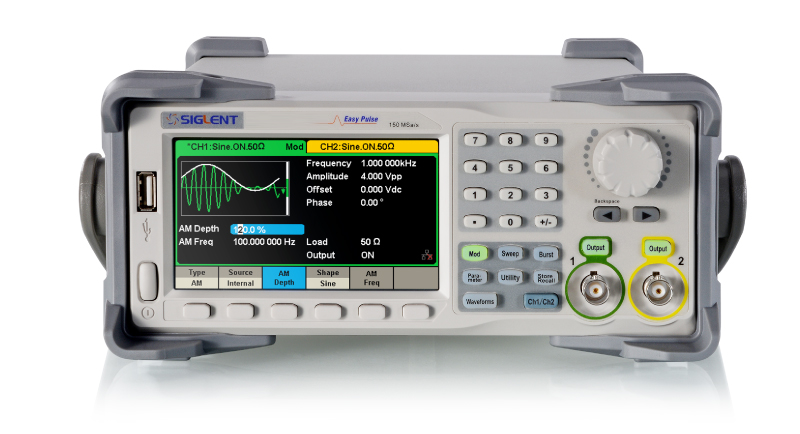

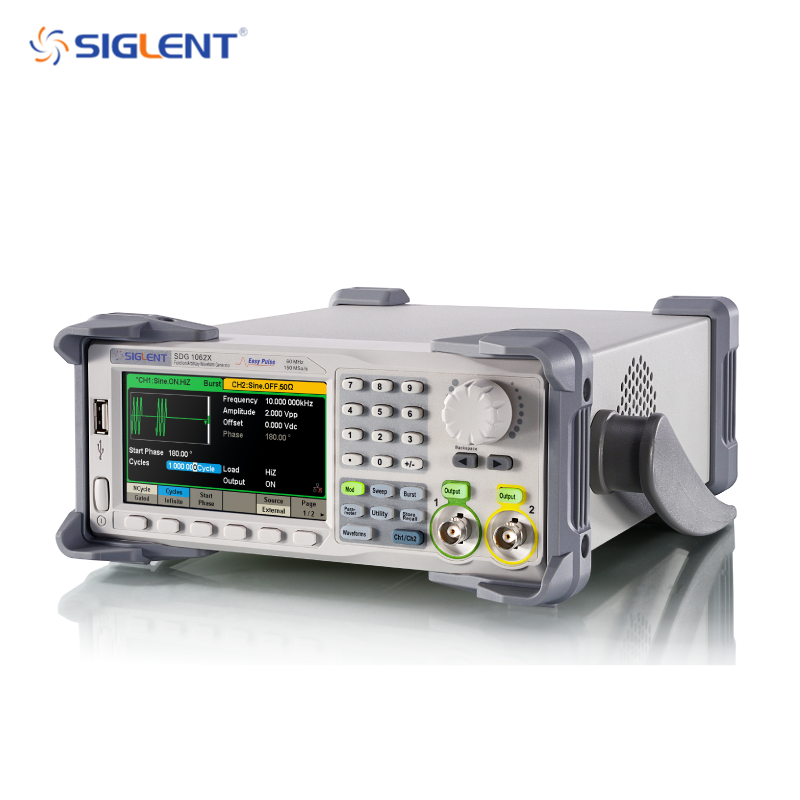

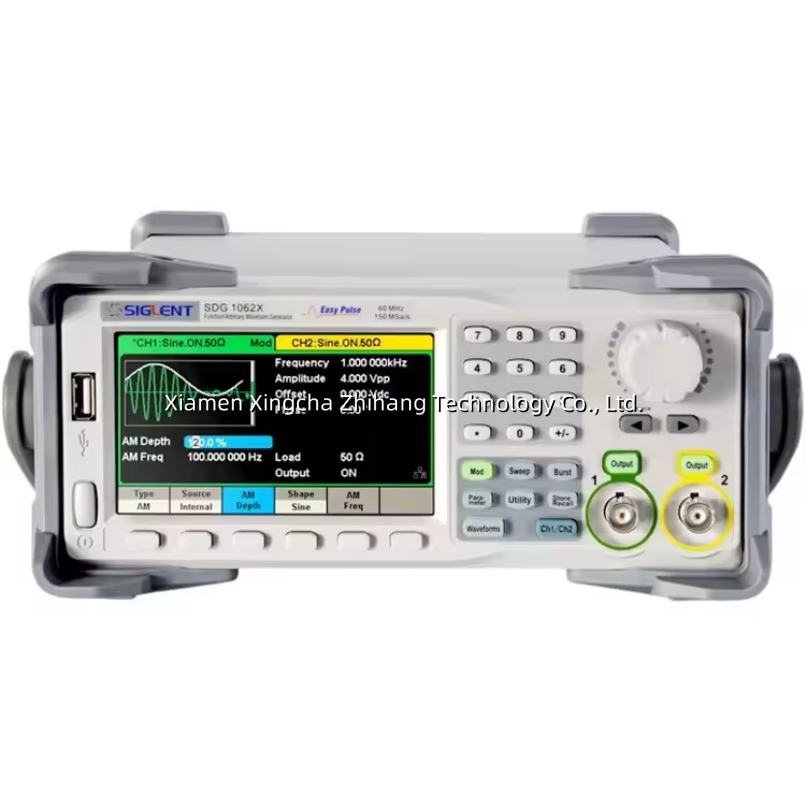

Siglent SDG1062X 双通道函数发生器 60MHz 150MSa/s 采样 14位垂直分辨率 16kpts 波形长度
$
581.01
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail

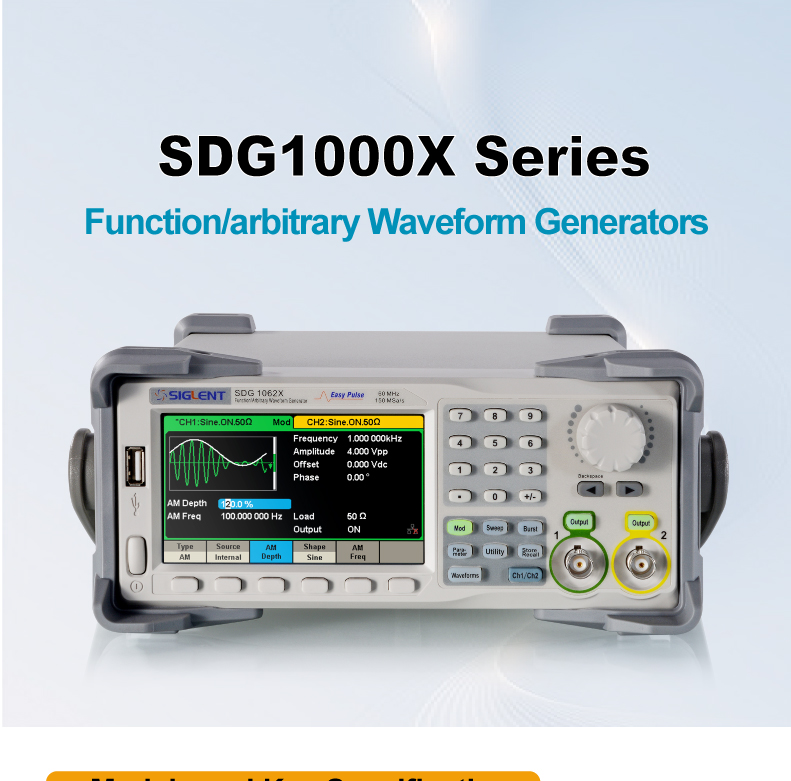

SDG1000X Series Dual-channel Function/Arbitrary Waveform Generator features a maximum output frequency of 60MHz, a sampling rate
of 150MSa/s, and a 14-bit vertical resolution. Based on traditional DDS technology, it adopts innovative EasyPulse and TrueArb
technologies to overcome the inherent defects of DDS in outputting pulses and arbitrary waves. The independent square wave channel
can generate low-jitter square waves with a frequency of up to 60MHz. The adjustment step is as small as 100ps, and it has
functions for generating various complex waveforms such as modulation, sweep, Burst, harmonic generation, and channel merging,
which can meet users' broader application needs.
of 150MSa/s, and a 14-bit vertical resolution. Based on traditional DDS technology, it adopts innovative EasyPulse and TrueArb
technologies to overcome the inherent defects of DDS in outputting pulses and arbitrary waves. The independent square wave channel
can generate low-jitter square waves with a frequency of up to 60MHz. The adjustment step is as small as 100ps, and it has
functions for generating various complex waveforms such as modulation, sweep, Burst, harmonic generation, and channel merging,
which can meet users' broader application needs.
Features and Advantages

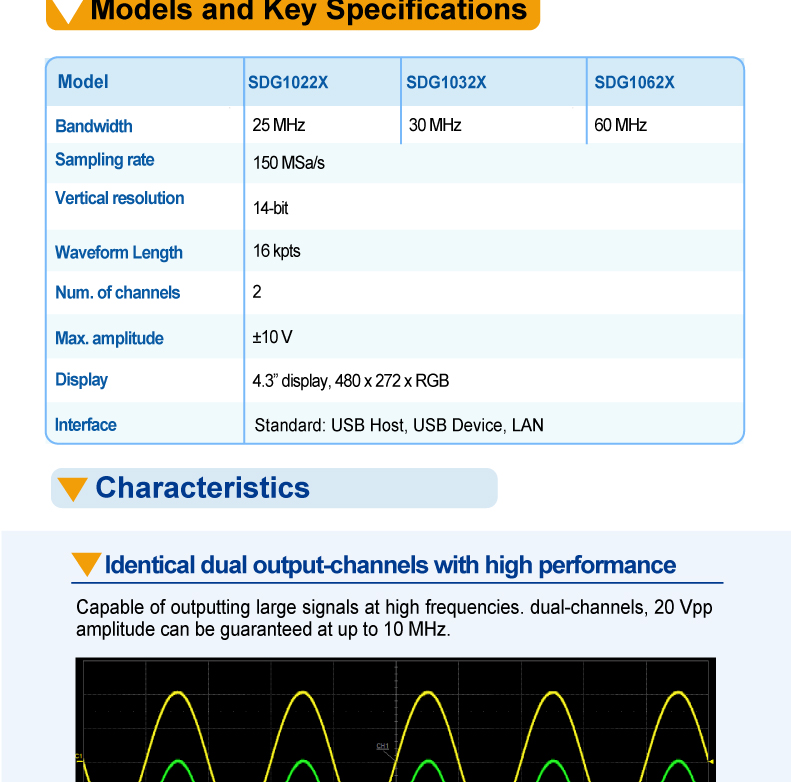

* Sampling rate of 150 MSa/s, 14 - bit vertical resolution, 16 kpts waveform length

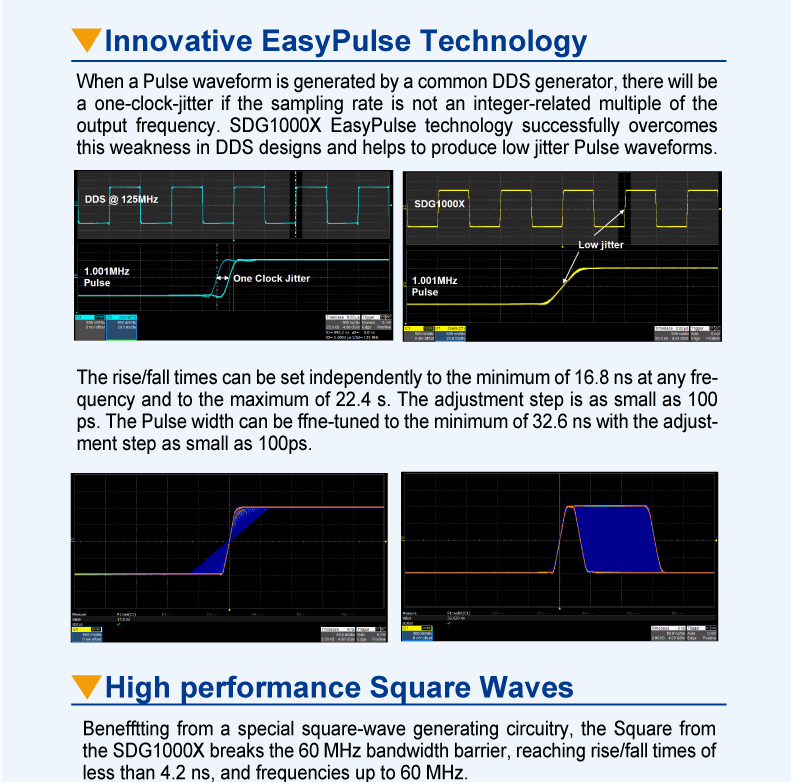

* Innovative EasyPulse technology, capable of outputting low - jitter pulses. It enables fine adjustment of pulse width,
rising/falling edges, with extremely high adjustment resolution and range.
* Innovative True Arb technology, outputting arbitrary waves point - by - point. Without losing waveform details, it can output
low - jitter waveforms of any length within the 2 pts - 16 kpts range at a variable sampling rate of 1 pSa/s - 30 MSa/s.
* Innovative EasyPulse technology, capable of outputting low - jitter pulses. It enables fine adjustment of pulse width,
rising/falling edges, with extremely high adjustment resolution and range.
* Innovative True Arb technology, outputting arbitrary waves point - by - point. Without losing waveform details, it can output
low - jitter waveforms of any length within the 2 pts - 16 kpts range at a variable sampling rate of 1 pSa/s - 30 MSa/s.

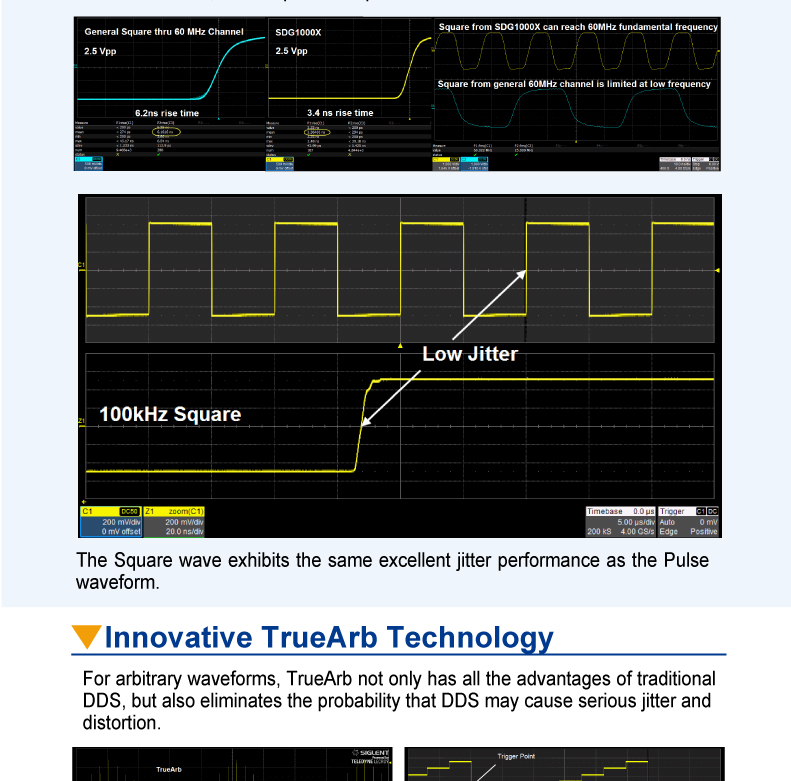

* Independent square wave channel, maximum frequency of 60 MHz, jitter less than 300 ps + 0.05 ppm of the period

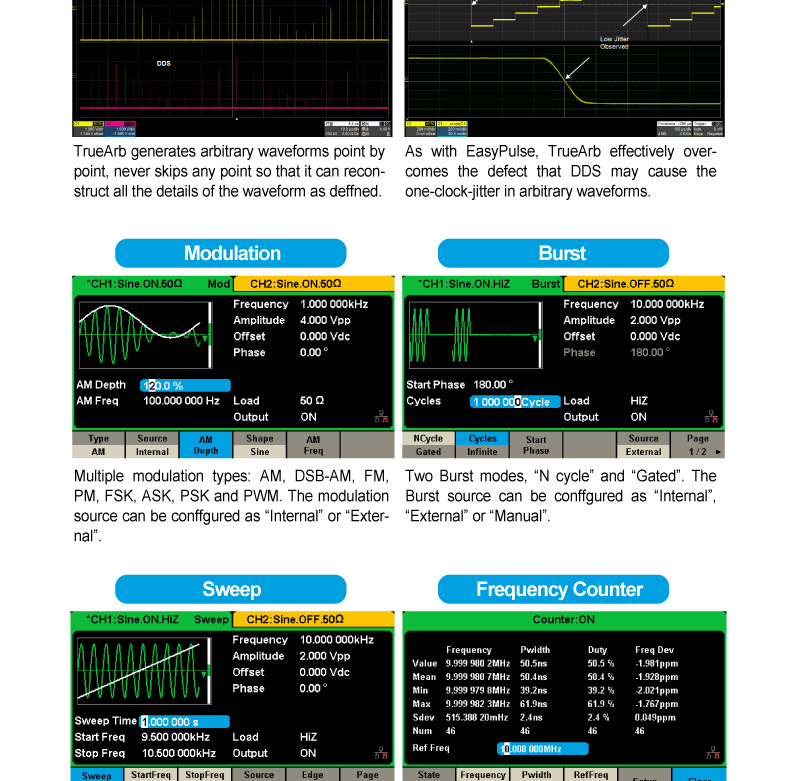

* Abundant analog and digital modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PSK, and PWM
* Sweep and Burst functions

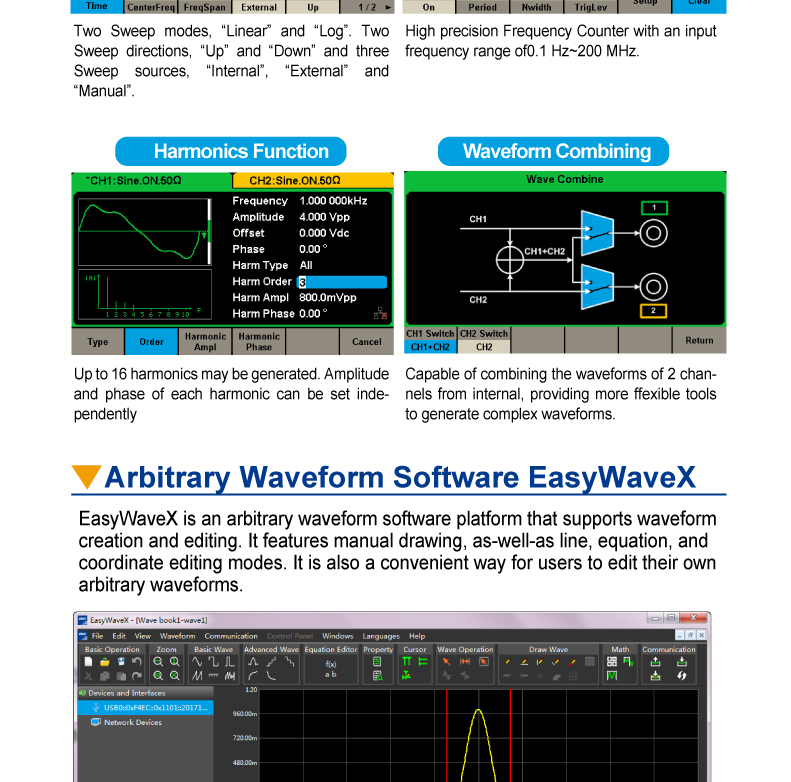

* Harmonic generation function
* Channel merging function
* Hardware frequency meter function
* 196 built - in arbitrary waves

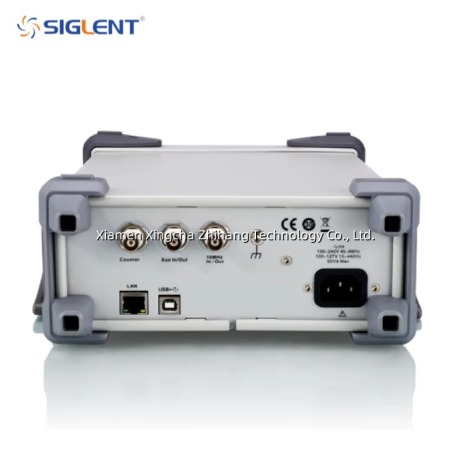

* Rich communication interfaces: Standard - equipped with USB Host, USB Device (USBTMC), LAN (VXI - 11), optional GPIB

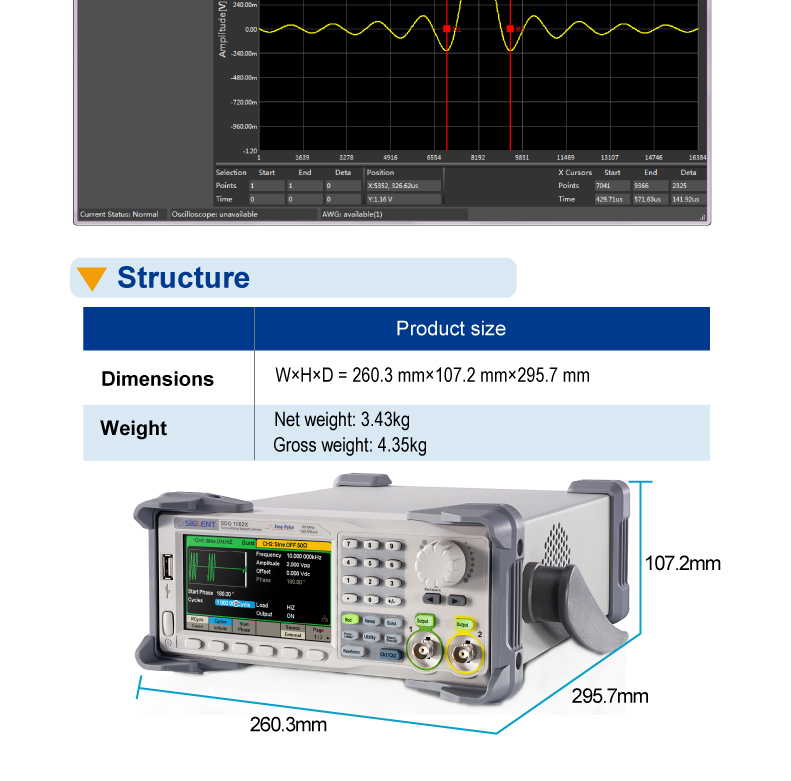

* 4.3 - inch display
* Abundant analog and digital modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PSK, and PWM
* Sweep and Burst functions
* Harmonic generation function
* Channel merging function
* Hardware frequency meter function
* 196 built - in arbitrary waves
* Rich communication interfaces: Standard - equipped with USB Host, USB Device (USBTMC), LAN (VXI - 11), optional GPIB
* 4.3 - inch display
