ZLG USBCANFD-200U 2通道USB转CAN FD接口卡工业级2500VDC隔离

Product Detail

Product Overview

Core Technical Parameters

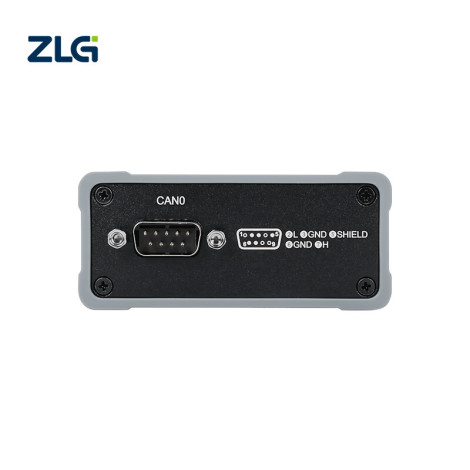

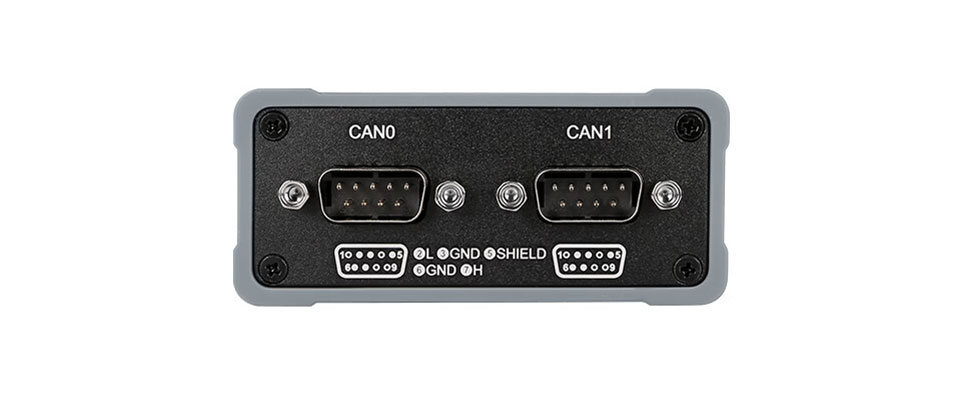

1. CAN FD & LIN Configuration: 2 independent CAN FD channels with DB9 interface form, supporting ISO/Bosch dual CAN FD standards and fully compatible with CAN2.0A/B communication mode; 2 LIN bus channels to meet the testing needs of automotive electronic LIN bus, realizing master-slave station configuration data transceiving and schedule testing.
2. Baud Rate Performance: CAN FD arbitration ID segment baud rate is 40K~1Mbps, data segment accelerated baud rate is 100K~5Mbps, with maximum 64-byte data frame, providing 40 times higher data load than traditional CAN2.0A/B.
3. Data Transmission Capacity: Under the condition of single channel 5Mbps 0-byte data field, the sending capacity reaches 16500 frames per second and the receiving capacity is 27000 frames per second; 120 ohm terminal resistor on CAN FD port is software-enabled, realizing flexible and convenient configuration.

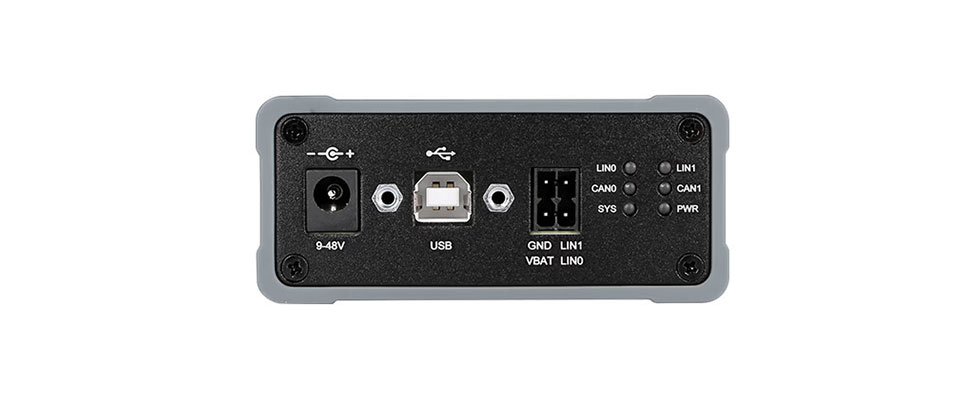

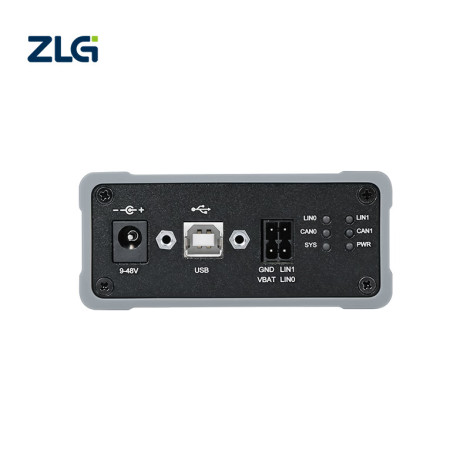

4. PC Interface & Power Supply: Adopts high-speed USB2.0 (480Mbps) interface for stable and fast data transmission between PC and CAN FD network; supports DC 9V~48V industrial power supply and USB port 5V power supply, dual power supply mode to meet different application scenario requirements.
5. Hardware Features: Adopts domestic high-performance HPMicro RISC-V microcontroller, with metal shell design for better anti-interference and physical protection; supports hardware-side timed sending and queue sending, realizing efficient and automatic data transmission.

Industrial Grade Reliability & Protection

1. High Voltage Electrical Isolation: Each CAN FD interface is equipped with independent 2500VDC electrical isolation protection circuit, which can effectively eliminate ground loop damage and avoid device failure caused by different node ground potentials, greatly enhancing the reliability of the device in harsh industrial environments.
2. Anti-interference & Surge Protection: With contact discharge ±4KV ESD protection and ±1KV surge protection, it can resist various electromagnetic interferences in industrial sites and ensure the stable operation of the device in complex working conditions such as high temperature and high humidity.
3. Wide Temperature Adaptation: Complies with industrial-grade standard with operating temperature range of -40~85℃, suitable for extreme working conditions such as automotive testing rail transit equipment industrial automation control systems and new energy vehicle power battery testing.
4. Anti-lost Frame Design: Built-in maximum 40000 frames hardware buffer and 130000 frames software buffer in the interface function library, which can effectively resist high bus load impact and ensure no frame loss of received CAN FD messages, realizing complete and accurate bus data collection and analysis.

Multi-system Compatibility & Professional Software Support

1. Operating System Compatibility: Perfectly supports Windows 7/8/10/11 and various Linux operating systems, providing professional and stable driver programs to ensure seamless connection and smooth operation with different PC devices.
2. Standard Free Professional Software: Comes with ZXDoc and ZCANPRO CAN bus test and analysis software, which are efficient rich in functions easy to use and free of charge, providing a full set of one-stop solutions for bus system architecture network design development and testing.
3. Rich Software Functionalities: The software supports DBC sending and parsing real-time curve analysis UDS diagnosis ECU flashing XCP/CCP calibration and bus simulation; it also supports real-time bus utilization rate reporting function, helping users accurately master bus load information and prevent abnormal intrusion.
4. Powerful Protocol Analysis: Free support for CANopen J1939 and DeviceNet protocol parsing; fully compatible with ISO15765 standard to realize on-board UDS diagnosis, easily completing standard diagnostic operations such as ECU reset and diagnostic session control.
5. Data Analysis & Automated Testing: Supports CAN FD message recording and playback function, and can load DBC files for variable curve analysis, which is convenient for engineers to analyze bus data and troubleshoot problems; users can edit test processes to realize automated testing of the tested equipment including sending waiting verification and response verification.

Strong Secondary Development Capability

1. Complete Development Library: Provides a full set of secondary development function libraries, with demo programs for mainstream development languages such as C++ C# Python and Labview, which is simple and easy to use, and can meet the customized development needs of different users in various industries.
2. Advanced Protocol Package: Carries DBC UDS and other advanced protocol packages; users can realize seamless switching of different interfaces only by modifying the device type, greatly improving the efficiency of secondary development.
3. Automotive Electronics Special Protocol Library: Preloaded with UDS OBDII ISO_15765 and other special high-level protocol secondary development libraries for automotive electronics, assisting in the testing and maintenance of automotive electronic components; supports ECU firmware flashing and E2E security algorithm, which perfectly matches the AUTOSAR standard and meets the development requirements of modern automotive electronics.

Wide Application Scenarios

• Automotive Electronics: R&D and testing of automotive components power batteries vehicle E/E architecture and autonomous driving, on-board diagnostic maintenance LIN bus testing and ECU flashing calibration.
• Industrial Automation: CAN FD bus network design debugging and data analysis of industrial control systems, real-time monitoring of equipment operation and fault diagnosis of industrial field bus.
• Rail Transit: Data transmission and bus testing of rail transit equipment, adapting to the harsh working environment of rail transit with industrial-grade protection and wide temperature adaptation performance.
• Medical Electronics: High-speed and stable data transmission of medical electronic equipment, providing reliable bus communication support for the intelligent upgrade of medical equipment.
• New Energy Industry: Testing and debugging of new energy vehicle power battery management systems and motor control systems, realizing real-time data collection and analysis of high-voltage systems.

Product Advantages

1. Multi-channel & Multi-function: Integrates 2 CAN FD channels and 2 LIN channels, meeting the multi-bus testing needs of automotive electronics and industrial automation, and realizing one machine with multiple uses.
2. Industrial Grade High Reliability: 2500VDC electrical isolation wide temperature adaptation anti-interference and surge protection, ensuring stable operation in various harsh industrial environments.
3. Flexible Power Supply: Dual power supply mode of DC 9V~48V and USB port power supply, no need for additional power supply equipment, suitable for various on-site testing and laboratory development scenarios.
4. Domestic Core Chip: Adopts high-performance HPMicro RISC-V microcontroller, providing strong computing power for edge computing applications and ensuring the stability scalability and compatibility of the device.
5. Cost-effective: Equipped with free professional test analysis software and complete secondary development library, reducing the development and testing cost of users while ensuring high performance and multi-functions.

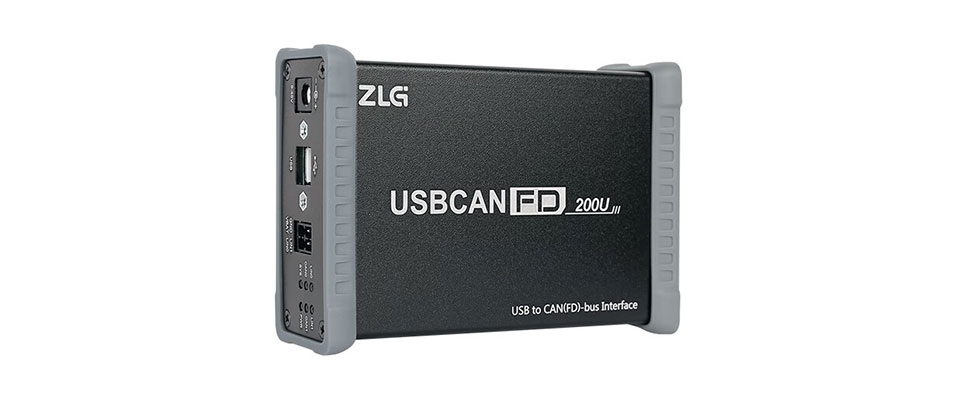

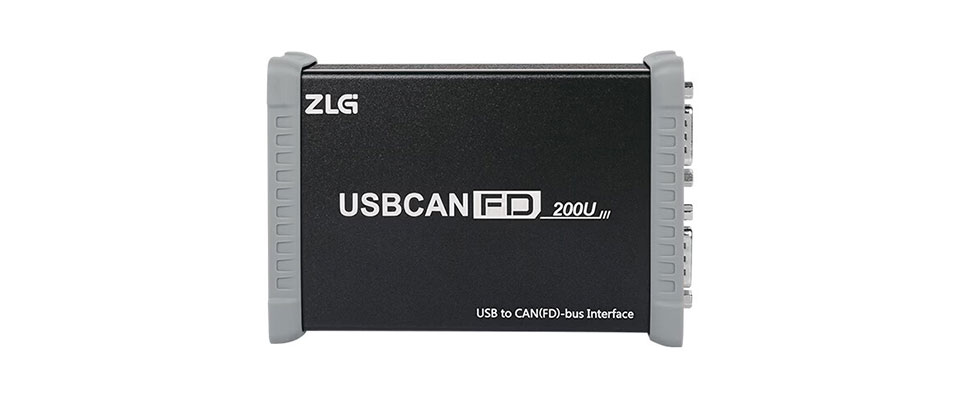

Pictures of USBCANFD-200U
