ZLG RS232/RS422/RS485转CAN总线转换器模块双向通信工业级CAN通信设备CANCOM-100IE +
$
106.11
Qty:
In stock
30-day Return Policy,
Learn More
Description
Product Detail
Product Overview
ZLG CANCOM-100IE+ three-in-one industrial-grade intelligent protocol converter can quickly connect RS-232/485/422 communication equipment to CAN-bus field bus to realize two-way communication.
* Support 600~230400bps serial port rate, 5Kbps~1Mbps CAN-bus communication rate;
* The converter provides three data conversion modes: transparent conversion, transparent label conversion, format conversion, to meet the needs of different customers;
* The interfaces are all industrial-grade design, and the CAN interface comes with a magnetic coupling isolation module to avoid damage due to ground circulation;
* Strong anti-static and surge capability, so that it can be used in harsh environments;
* The converter provides serial port configuration software, which can flexibly set the operating parameters of CANCOM-100IE;
* Various operating parameters can be flexibly set under Windows 98/Me/NT/2000/XP/WIN7/WIN8/WIN10 operating systems.
* Support 600~230400bps serial port rate, 5Kbps~1Mbps CAN-bus communication rate;
* The converter provides three data conversion modes: transparent conversion, transparent label conversion, format conversion, to meet the needs of different customers;
* The interfaces are all industrial-grade design, and the CAN interface comes with a magnetic coupling isolation module to avoid damage due to ground circulation;
* Strong anti-static and surge capability, so that it can be used in harsh environments;
* The converter provides serial port configuration software, which can flexibly set the operating parameters of CANCOM-100IE;
* Various operating parameters can be flexibly set under Windows 98/Me/NT/2000/XP/WIN7/WIN8/WIN10 operating systems.

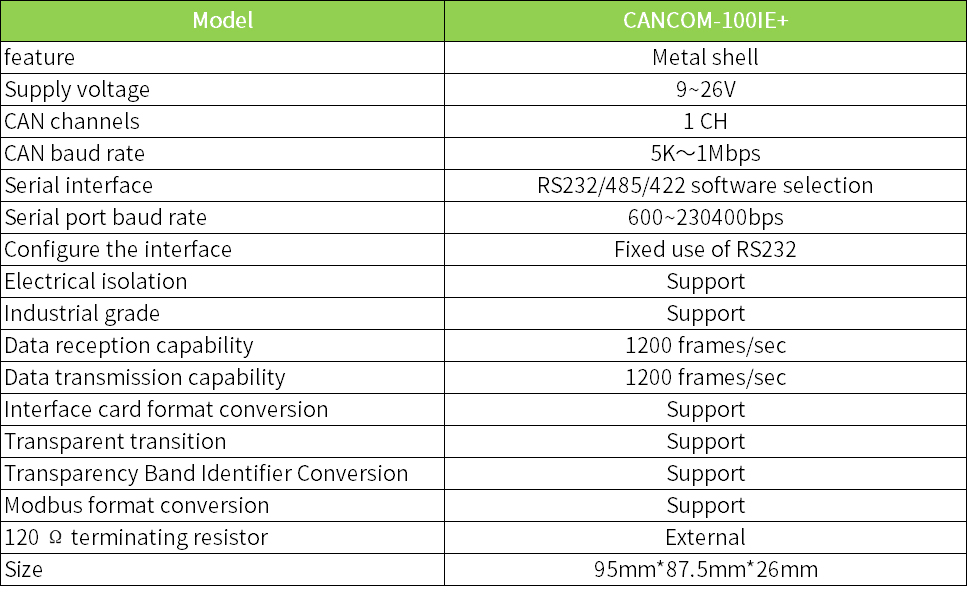

Product Parameter

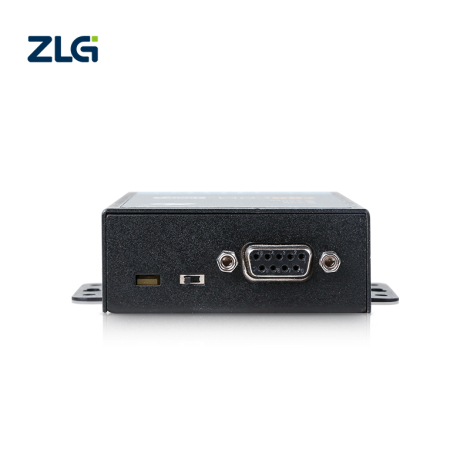

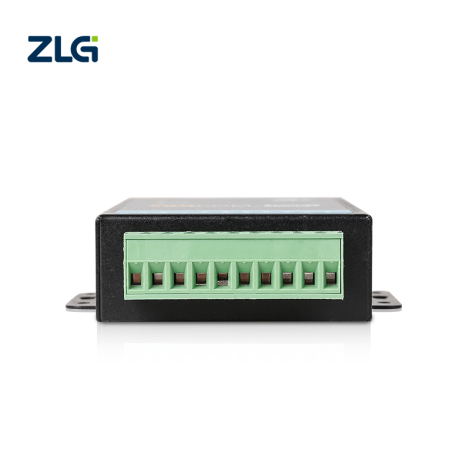

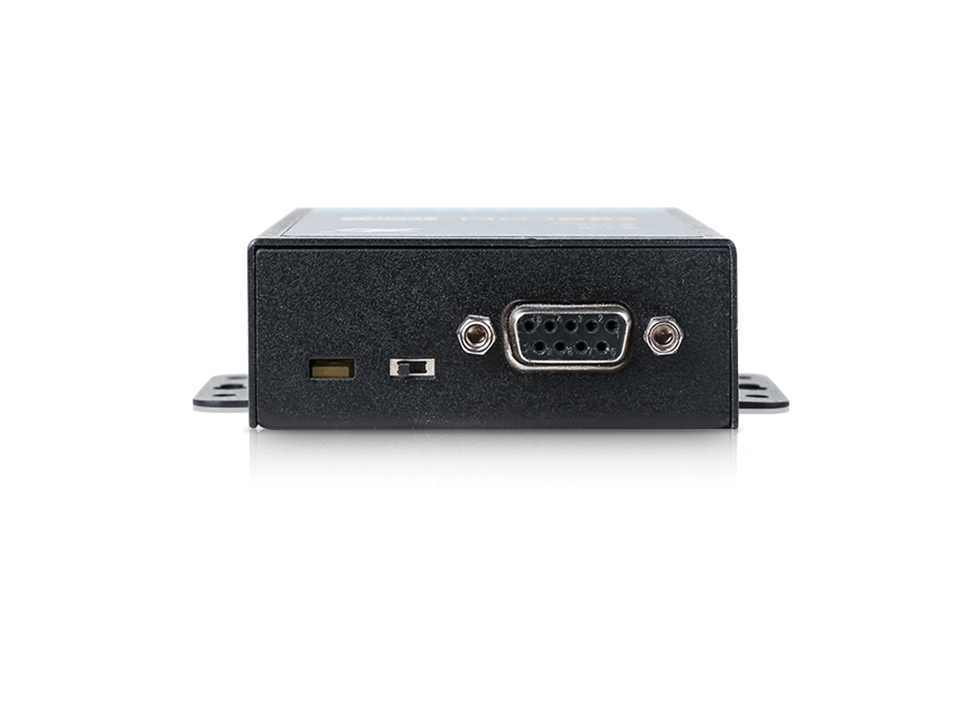

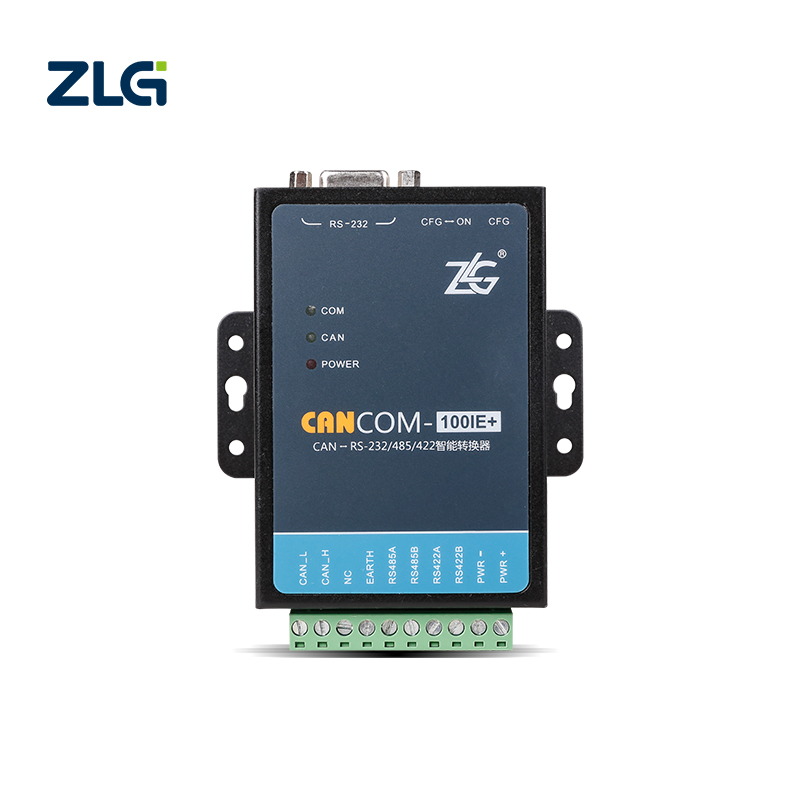

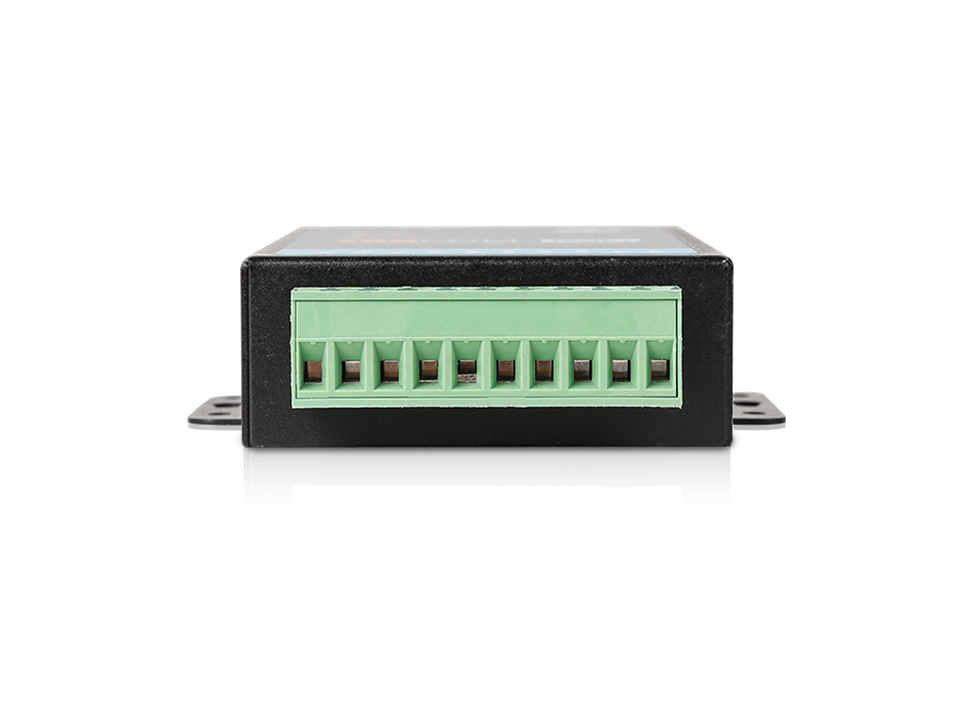

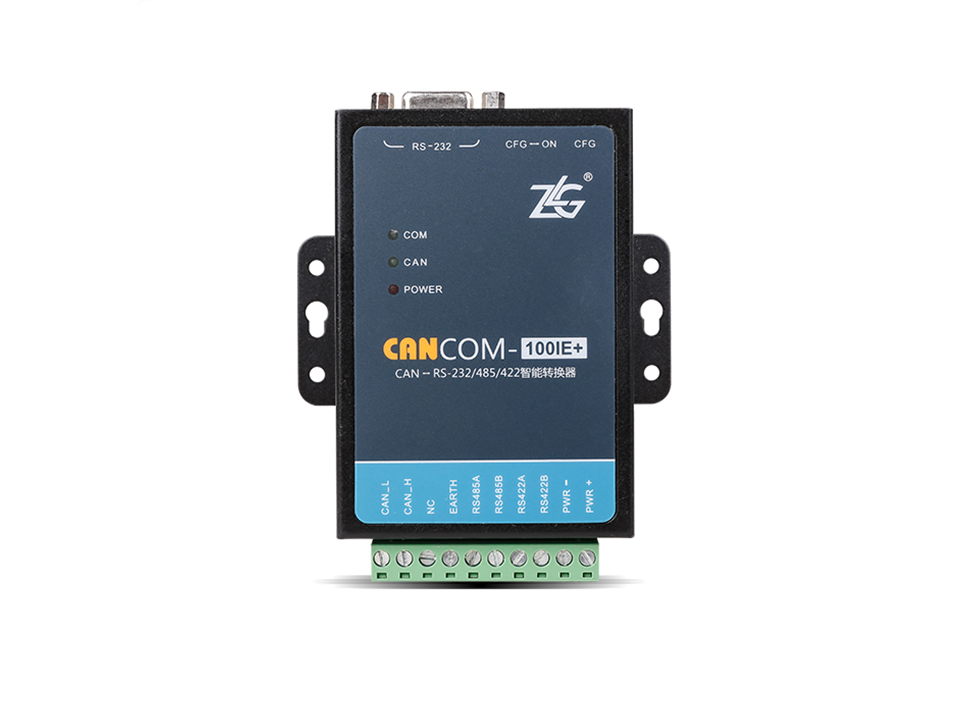

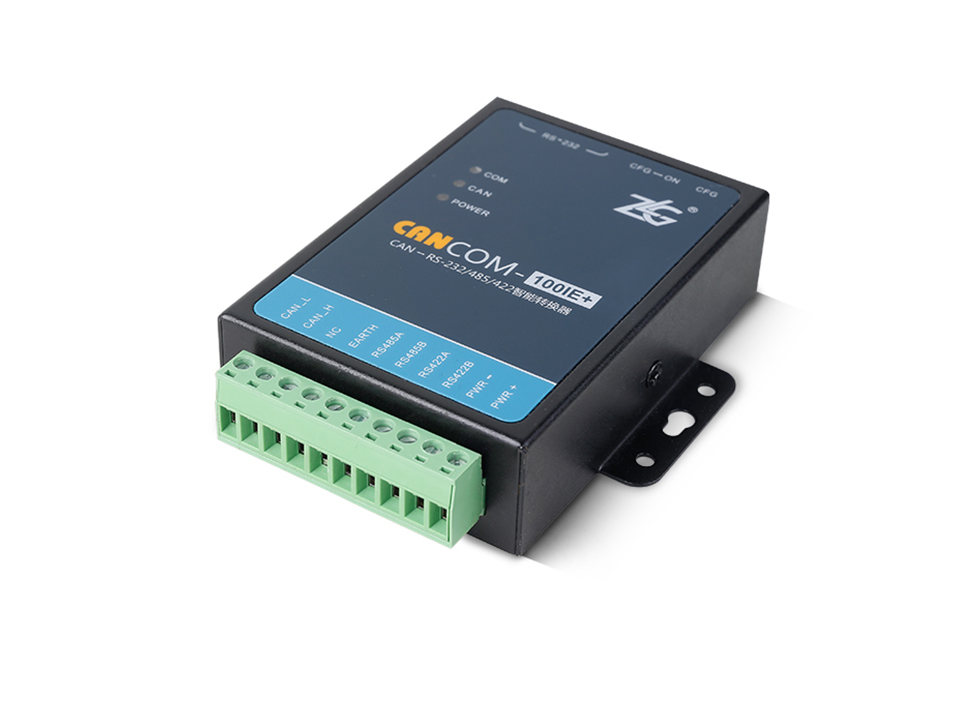

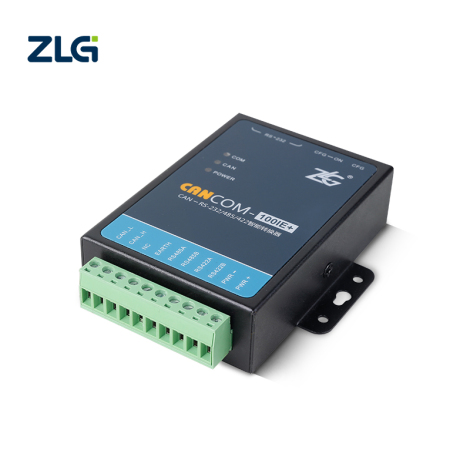

Product Picture
Specification
item | value |
Brand Name | ZLG |
Model Number | CANCOM-100IE+ |
Product name | CANCOM-100IE+ |
Supply voltage | 9-26V |
CAN channels | 1 CH |
CAN Baud Rate | 5K~1Mbps |
Serial Interface | RS232/485/422 software selection |
Serial port baud rate | 600~230400bps |
Configuring the interface | Fixed use of RS232 |
Data receiving capability | 1200 fps |
Data sending capability | 1200 fps |
Size | 95mm*87.5mm*26mm |
