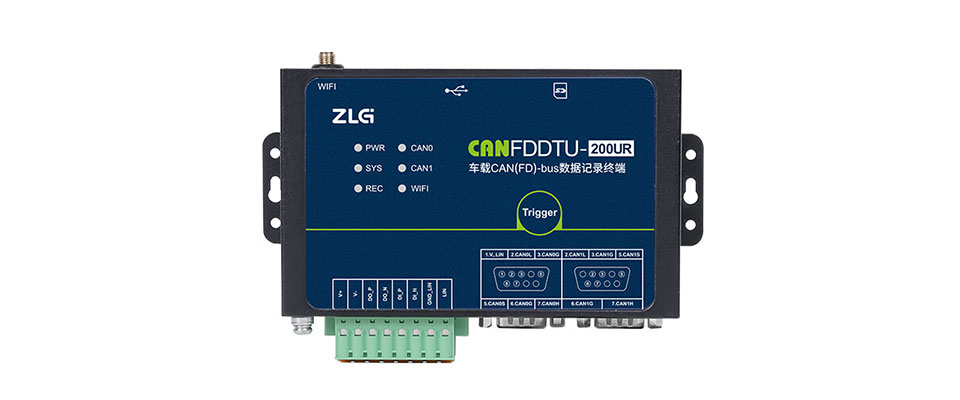

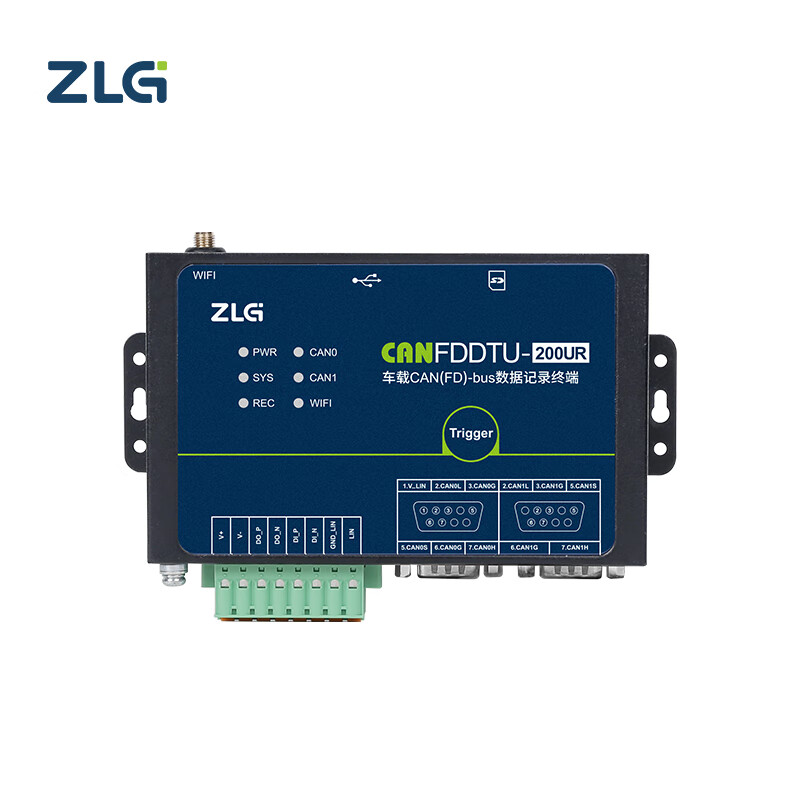

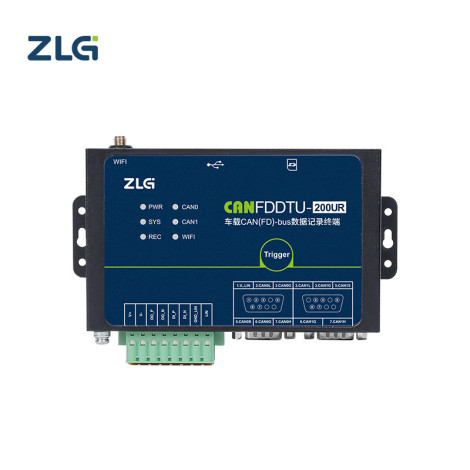

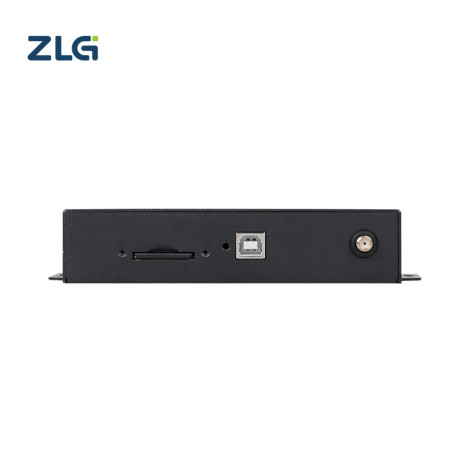

ZLG CANFDDTU-200UR 车载 CAN FD 总线数据记录仪 2 通道，支持 WiFi，支持 ISO11898 标准，适用于汽车轨道交通

Product Overview

Key Features

1. Powerful CAN FD Performance

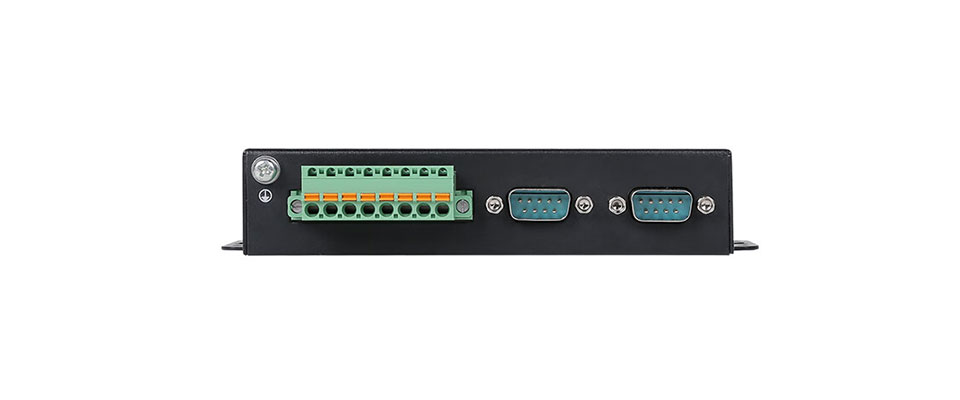

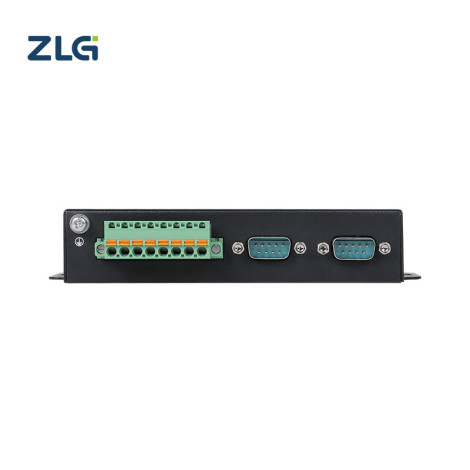

   Equipped with 2 CAN FD channels with DB9 interface the arbitration ID segment baud rate ranges from 40K to 1Mbps and the data segment accelerated baud rate is 100K to 5Mbps. It supports 4000 frames per second data reception per channel and the 120Ω terminal resistor can be enabled via configuration tools meeting various CAN bus application requirements.

2. Large Capacity Storage & WiFi Transmission

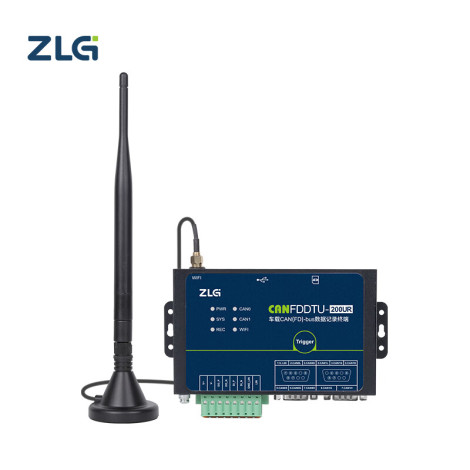

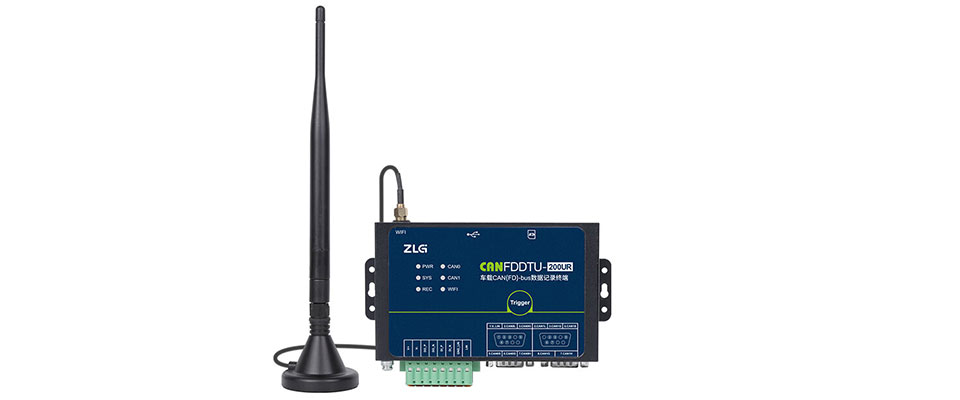

   Comes with Class10 64GB standard SD card support up to 256GB maximum storage expansion. Built-in WiFi data cloud upload function enables wireless file transmission to the server without plugging and unplugging the SD card realizing convenient and fast data extraction and management.

3. Multiple Recording Modes



   Configurable via ZCANConfigTool/CANDTU professional tools with various recording modes including long-term recording conditional recording pre-trigger recording and timing recording. The Trigger button can mark bus message data in real time quickly locating occasional faults and improving fault diagnosis efficiency.

4. Rich Interfaces & Functions



   Integrates 1 LIN bus channel 1 digital input and 1 digital output channel meeting multi-scenario data acquisition needs. Built-in RTC real-time clock provides accurate time stamping for recorded data ensuring data traceability and analysis accuracy.

5. Industrial Grade Reliability



   With 2500VDC electrical isolation it can work stably in the temperature range of -40~85℃ (excluding SD card) and supports DC 9~48V wide voltage power supply adapting to harsh vehicle and industrial working environments. The metal shell provides better protection and anti-interference performance.

6. Diverse Data Formats & Software Compatibility



   Records data that can be directly saved or converted into 9 file formats including blf crf asc and csv via tools. It is fully compatible with mainstream analysis software such as ZXDoc and ZCANPRO and matches the ZWS-CAN smart cloud platform realizing remote data acquisition cloud analysis and cloud debugging.


Technical Parameters

• Brand: ZLG
• Model: CANFDDTU-200UR

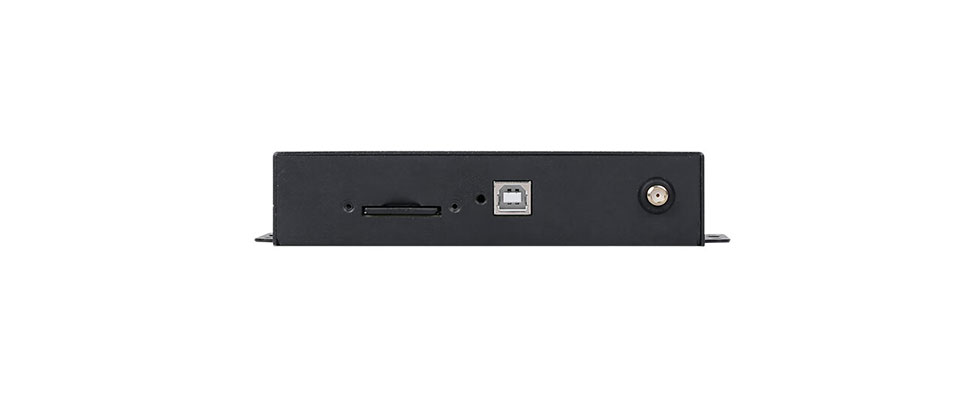

• PC Interface: USB2.0 (480Mbps)
• CAN FD Channels: 2 channels (DB9 interface)
• LIN Channels: 1 channel
• Digital I/O: 1 input 1 output
• Storage: Class10 SD card 64GB standard 256GB maximum
• Data Reception: 4000 frames/second (per channel)
• Baud Rate: Arbitration segment 40K~1Mbps Data segment 100K~5Mbps
• Wireless Function: WiFi data cloud upload
• RTC Real-Time Clock: Supported
• Electrical Isolation: 2500VDC
• Working Temperature: -40~85℃ (excluding SD card)
• Power Supply: DC 9~48V
• Shell Material: Metal

Application Scenarios

• Automotive electronics: Vehicle road test data recording ECU fault diagnosis CAN bus network reliability optimization
• Rail transit: Train CAN bus data acquisition and fault location
• Industrial control: Industrial equipment CAN FD bus data monitoring and analysis
• Other fields: Long-term offline data recording and diagnosis of various CAN (FD)-bus based equipment

Software & Hardware Ecological Closure

Product Advantages

• Domestic high-performance core chip with strong computing and control capabilities
• Multi-channel multi-interface design meeting diverse data acquisition needs
• Wireless WiFi transmission realizing convenient data management
• Industrial grade design adapting to harsh working environments
• Diverse data formats and rich software compatibility providing comprehensive data analysis support
• Multiple recording modes quickly locating occasional faults and reducing diagnosis time
